Model: HDAG-14 Series
【Safety Lock Mechanism】

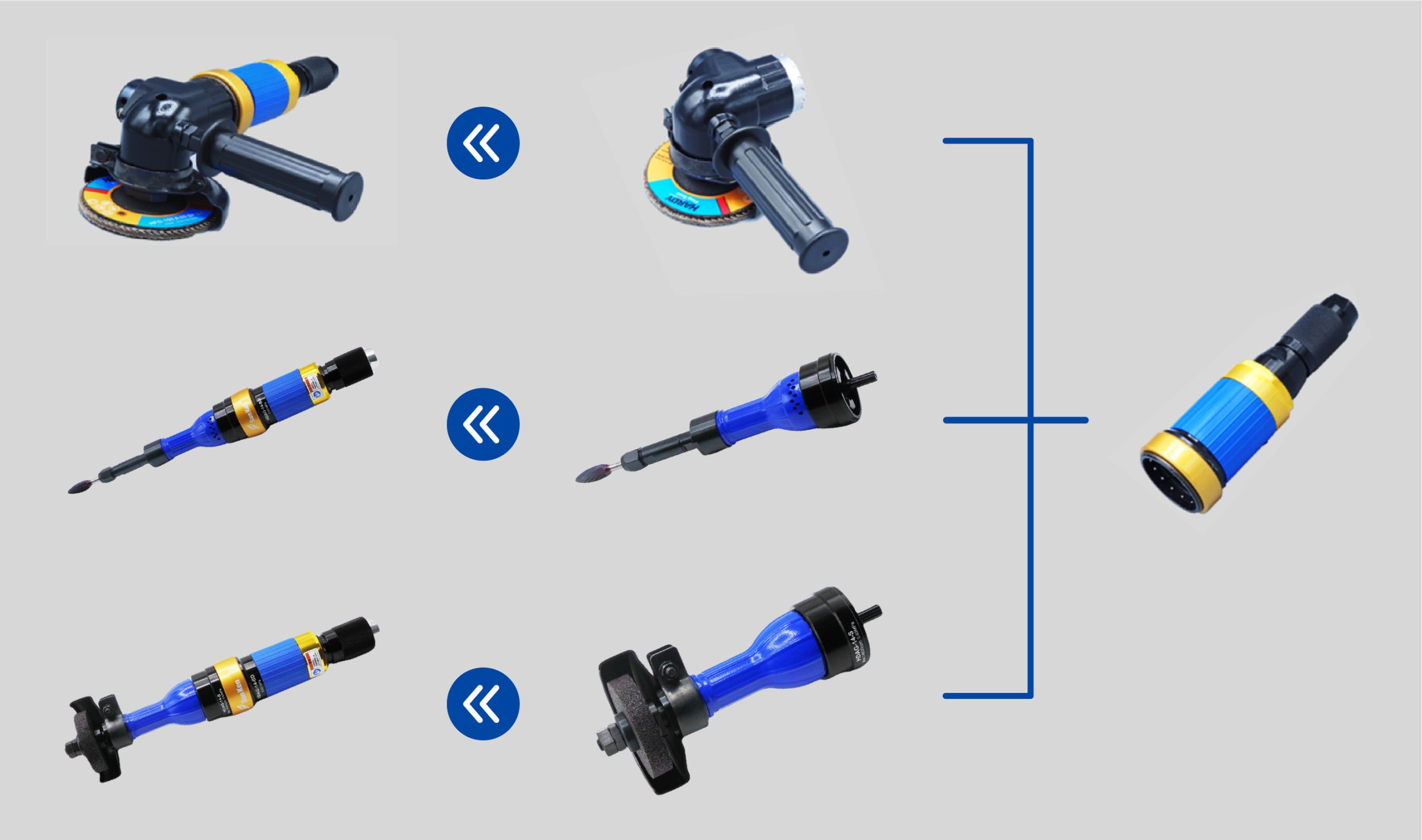

The connection between the body and the head part is as simple as aligning the shaft, inserting, and rotating. The Safety Lock mechanism works and ensure safety operation.
Features
- By simply exchanging the head, you can use Φ100 offset grinding wheels, 65mm flat grinding wheels, 6mm shank mounted points and rotary burrs.
- Designed with a Safety Lock mechanism that works when the head part is mounted into the body part. This design allows the tool under safe operation.
- Powerful motor provides grinding productivity and finish precision
スクロールできます
| Model No. | Grinding Wheel Or Collet Size | Free Speed | Output | Overall Length | Weight | Max Air Consumption | Inlet Thread | Air Hose ID | Exhaust |
|---|---|---|---|---|---|---|---|---|---|
| mm | min-1 | W | mm | kg | m3/min | in | mm | ||

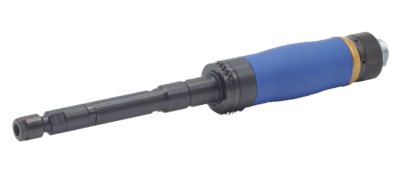

| HDAG-14-C/BD | 6 | 14,600 | 870 | 378 | 1.64 | 1.00 | Rc 3/8 | 12.7 | Front |

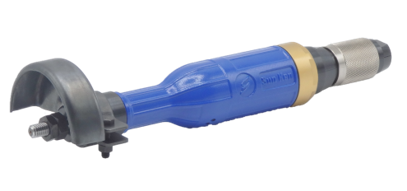

| HDAG-14-S/BD | 65X13X9.5 | 14,600 | 870 | 352 | 1.78 | 1.00 | Rc 3/8 | 12.7 | Side |

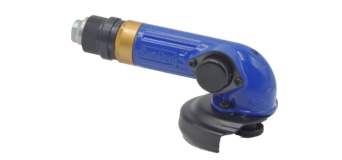

| HDAG-14-A/BD | 100X6X15.8 | 13,500 | 920 | 267 | 2.10 | 1.00 | Rc 3/8 | 12.7 | Side |
| HDAG-14-G/BD | 6 | 15,000 | 870 | 261 | 1.28 | 1.00 | Rc 3/8 | 12.7 | Side |
| Model No. | Overall Length | Weight |
|---|---|---|
| mm | kg | |
| HDAG-14-BD | 218 | 0.96 |
| HDAG-14-C | 230 | 0.68 |
| HDAG-14-S | 200 | 0.82 |
| HDAG-14-A | 116 | 1.14 |
| HDAG-14-G | 110 | 0.32 |
